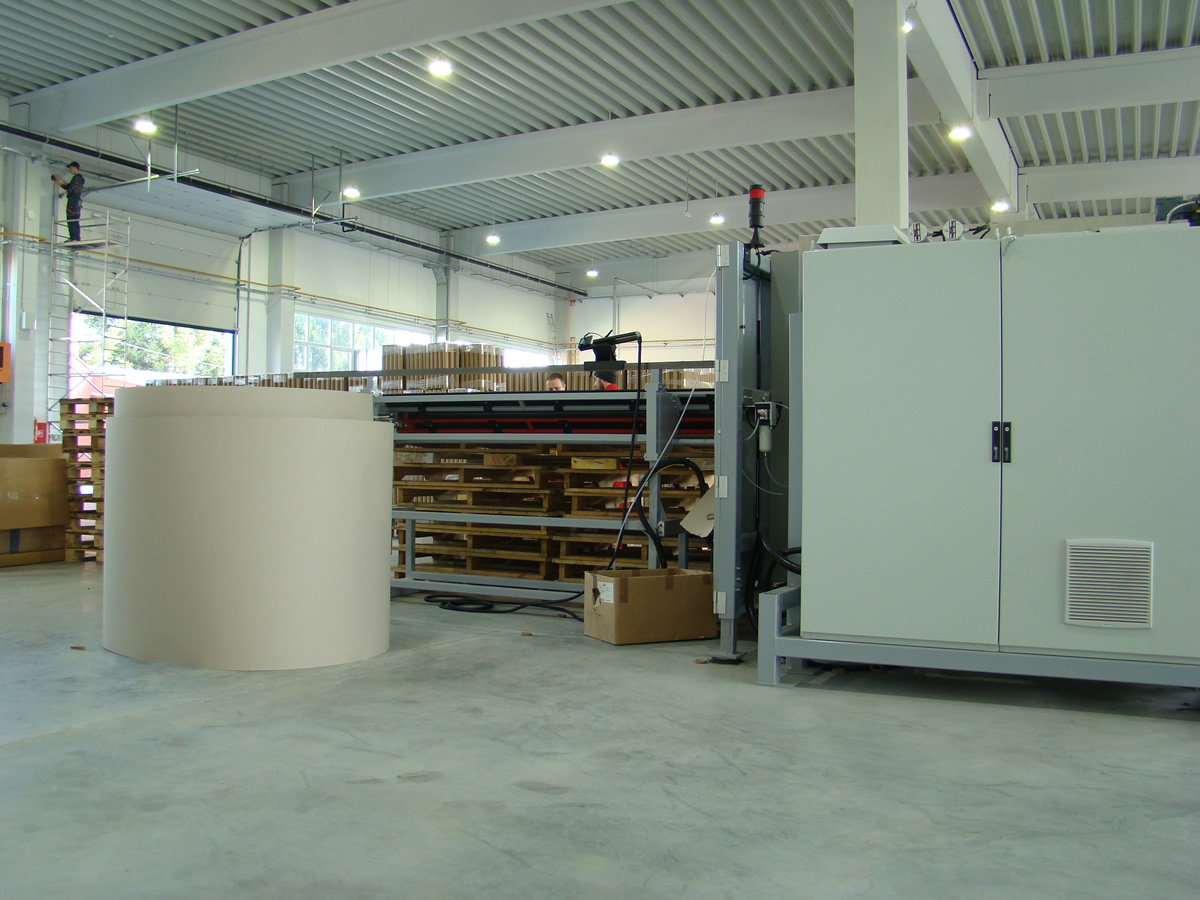

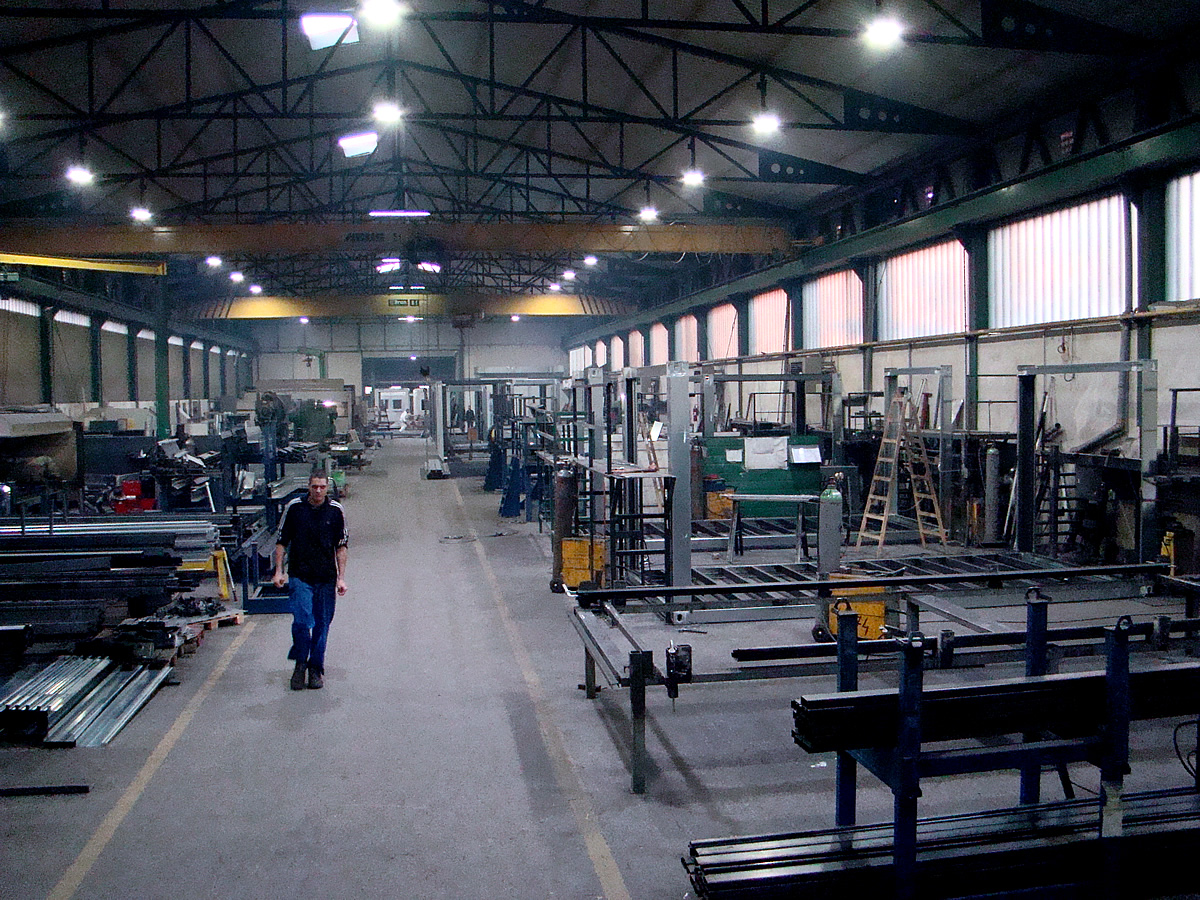

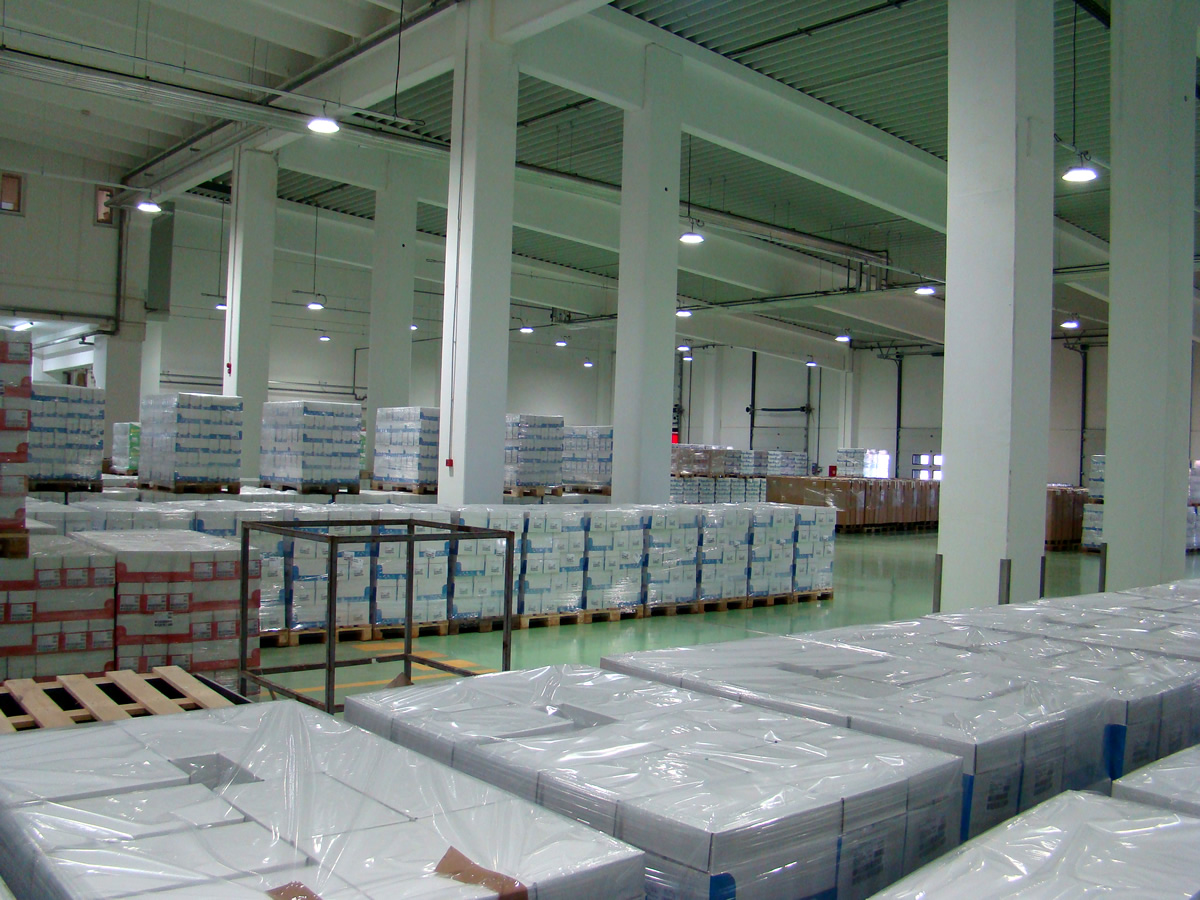

High Bay E+ HB380, industrial LED luminaire, provides huge savings in ownership costs, compared to conventional mercury or metal-halide lighting. It is suitable for production plants, warehouses,
shopping malls, canopies and other similar spaces.
Energy efficiency class A+ and A++, according to EU Regulation No 874/2012.
| LIGHT CHARACTERISTICS | E+ HB380 21000HP | E+ HB380 21000HP |
|---|---|---|
| Rated power (W) | 175 | 175 |
| CCT | 4000K | 5000K |
| CRI | >80 | >80 |
| Luminous flux (lm) | 19000 | 20000 |
| Luminous efficacy (lm/W) | 110 | 125 |
| Beam angle (lenses) | 27°, 45°, 61° | 27°, 45°, 61° |
| Second phase dimming | When regulatory phase is turned off it decreases lighting for 63% and energy 70% |
When regulatory phase is turned off it decreases lighting for 63% and energy 70% |
| Regulation (analog) | 1-10 (option: DALI) | 1-10 (option: DALI) |
| Operating temperature | From -25°C to +50°C Integrated temperature protection |
From -25°C to +50°C Integrated temperature protection |
| Flyer | E+ HB380HP | |
| IP | IP65 EN 60529:2000+A1:2008+A2:2014 |
| IK | IK10 HRN 62262:2008 |
| Housing | Cast aluminium |
| Power cable | Flexible, 4 - wire |
| Control cable | Flexible, 2 - wire |
| Weight (kg) | < 6 |
| Dimensions (mm) | Ø=380 H=114 |
| Package dimensions LWH (mm) | 400x400x120 |
| EMC |
EMC 14-239E; EN 55015:2013; EN 61547:2009; EN 62493:2010; EN 61000-3-2:2008+A1:2010+A2:2010; EN 61000-3-3:2009 |
| LVD | LVD 80120035; EN 60598-1:2009; EN 60598-2-1:2008 |
LDT
E+ HB380Do you need a complete documentation? Please feel free to contact us via email or phone.
